Description

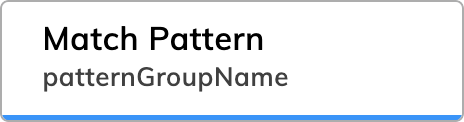

The Match Pattern Node enables a user to find patterns in text and expose them in the Input object. You can define patterns to search for in the input text or in the alternate text that was provided. If a pattern is found, a matchedPatterns group is created in the Input object.

​
Patterns

Patterns can be any text and can contain references to Slots by using the @ symbol. Example: @color @product In I need a green shirt, two Slots are found and assigned to color = green and product = shirt.

​
Tags

You can tag Slots in a pattern to make it easier to identify them later. Example: from @city>origin to @city>destination. In I want to go from Düsseldorf to Tokyo, the city Slot is found in a matched pattern group with origin and destination tags.

​
Parameters

ParameterTypeDescription
PatternsTextArrayThe patterns to be applied to the text.
Pattern Group NameCognigyTextThe name of the pattern matching group.
Create New SlotsBooleanIndicate whether new Slots are created from tags or not.
Tag Existing SlotsBooleanIndicate whether existing Slots are tagged or not.
Detailed Compound SlotsBooleanIndicate whether detailed results for the matched patterns are stored or not.
Alternate InputCognigyTextThe input text to use instead of the current input text.

​
Example

Text: I want to fly from bErlin to NEW York with 3 or 4 people on October 1st 2021 if its 30 degrees and I am 22 years old 100% Pattern: from @city>origin to @city>destination with @NUMBER>ppl1 or @NUMBER>ppl2 people @DATE>date if its @TEMPERATURE>celsius degrees and I am @AGE>userage years old @PERCENTAGE>perc Result:
"matchedPatterns": {
        "group": [
            {
                "matchedPhrase": "from bErlin to NEW York with 3 or 4 people on October 1st 2021 if its 30 degrees and I am 22 years old 100%",
                "origin": "Berlin",
                "destination": "New York",
                "ppl1": 3,
                "ppl2": 4,
                "date": {
                    "day": 1,
                    "month": 10,
                    "year": 2021,
                    "hour": 12,
                    "minute": 0,
                    "second": 0,
                    "millisecond": 0,
                    "weekday": 1,
                    "dayOfWeek": "Monday",
                    "ISODate": "2020-06-15T12:00:00"
                },
                "celsius": 30,
                "userage": 22,
                "perc": 100
            }
        ]
    }
