Copilot: Set Grid

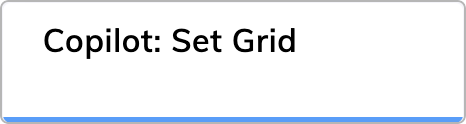

Copilot Set Grid Node configuration panel

Description

The Copilot: Set Grid Node updates the existing Agent Copilot workspace grid in the Agent Copilot Configuration, created via an API POST request. Additionally, this Node can be used instead of the Agent Copilot Configuration to preview, edit, and modify the grid. To edit the grid configuration, open the Node Editor and modify the default Agent Copilot Grid Configuration in JSON, then check the preview below to confirm the configuration is correct. Multiple Nodes can be utilized within a single Agent Copilot Flow, enabling you to modify the grid according to your specific requirements.

Parameters

Parameter	Type	Description
Agent Copilot Grid Configuration	JSON	Updates the Agent Copilot workspace grid configuration. By default, there is a grid example in the code editor. You can view a grid with Tile IDs in the Node editor.
Background Selector	Select	Customizes the background color of the Agent Copilot workspace. You can select one of the following options: Default — the default white color. Solid Background Color — specify the color in RGB or Hex format. Custom Image — specify an image URL.
Color (RGB/Hex)	CognigyScript	This field appears if the Solid Background Color option is selected. Enter the color in one of the following formats: RGB. For example, green can be represented as `rgb(34, 85, 85)`. Hex. For example, red can be represented as `#FF3333`. The color will be rendered under the field.
Image URL	CognigyScript	This field appears if the Custom Image option is selected. Provide the image URL for your custom background. The image will be rendered under the field.
