Description

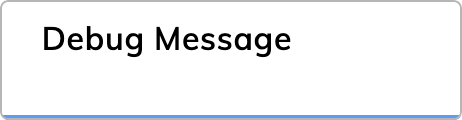

This Node sends a debug message to the Interaction Panel. Debug messages help you track the flow of data and diagnose issues by providing real-time information about what’s happening during the Flow execution. To view the debug message, enable debug mode.

​
Parameters

ParameterTypeDescription
Debug LevelSelectThe Debug message level. Select one of the following options:
  • Info — info messages will be displayed with a blue background and contain general information. For example: User successfully logged in.
  • Error — error messages will be displayed with a red background to highlight issues. For example: Failed to connect to the database.
HeaderCognigyScriptThe header text of the debug message. This parameter is optional.
Examples:
  • User Action
  • System Error
  • Database Connection
MessageCognigyScriptThe message text of the debug message. This parameter is mandatory.
Examples:
  • User input received: {{inut.text}}
  • Invalid phone number entered: {{profile.email}}

​
Examples

To show that the message relates to user’s actions, such as completing a task or making a selection, you can use the Debug Message Node with the header User Action. It can be helpful when a user fills out an Adaptive Card form or clicks the Submit button in xApps to confirm an action.
Header: "User Action"
Message: "User successfully completed the registration process"
To show that the message relates to an error related to database operations, use the Debug Message Node with the header Database Error. It can be useful for tracking errors that occur during database requests. For example, it can help identify issues when using MongoDB Nodes.
Header: "Database Error"
Message: "Failed to retrieve user data"

​
Alternatives

To debug a Flow when your AI Agent experiences issues on the production side, add a Log Message Node.
