AI Agent

Updated in 2026.12

Description

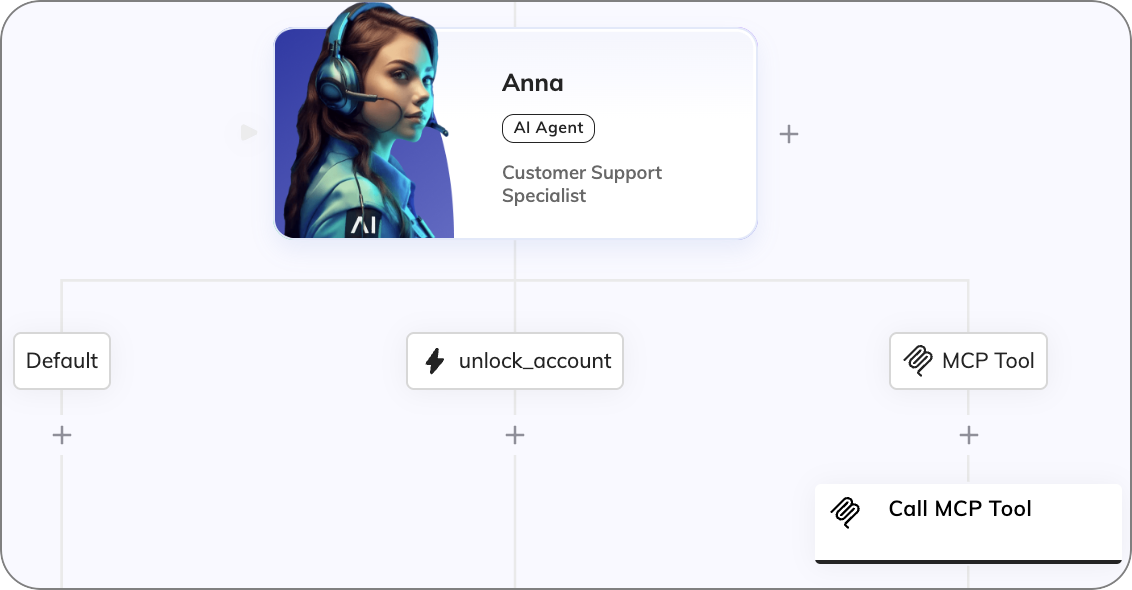

The AI Agent Node assigns a job to an AI Agent, provides instructions and tools for that job, and access to the knowledge the AI Agent can use when holding a conversation with a user. To configure this Node, follow these steps:

Define an AI Agent job.
Define the tool actions to perform this task.

Limitations

By default, the number of transcript turns is set to 50. In the AI Agent Node, this number is fixed and can’t be adjusted, unlike in the LLM Prompt and Get Transcript Nodes, where customization is possible.

The Description and Enum fields in the Parameters section of an AI Agent tool don’t support CognigyScript.

Parameters

Parent Node

This configuration assigns a job to an AI Agent, defines its role and responsibilities, and provides additional instructions or context to guide its actions.

AI Agent

Parameter	Type	Description
AI Agent	Selector	Select the AI Agent.
Job Name	CognigyScript	Specify the name of the job. For example, `Customer Support Specialist`.
Job Description	CognigyScript	Provide a description of the job responsibilities to guide the AI Agent’s interactions. For example, `Assist customers with product issues, escalate complex cases, and provide guidance on best practices`.
Instructions and Context	Toggle	Add specific instructions or context as a system message to help the AI Agent better fulfill the job requirements. For example, `Stay professional and friendly; focus on problem-solving and clarity`. These instructions are considered in addition to those specified in the AI Agent creation settings.

Memory Handling

Parameter	Type	Description
Long-Term Memory Injection	Selector	Allow the AI Agent to access Contact Profile information for the current user. Select one of the following options: None – no memory. Inherit from AI Agent – use the settings specified in the AI Agent creation settings. Inject full Contact Profile – use all information from the Contact Profile. Inject Contact Memories only – use information only from the Memories field in the Contact Profile. Inject selected Profile fields – use information from specific fields in the Contact Profile.
Selected Profile Fields	Text	This parameter appears when the Inject selected Profile fields option is enabled. Enter specific fields from the Contact Profile for targeted data use. Specify the field using the Profile keys format and press `Enter` to apply it.
Short-Term Memory Injection	CognigyScript	Specify a static string or a dynamic value via CognigyScript to make available to the AI Agent in the current turn.

Grounding Knowledge

Parameter	Type	Description
Knowledge Injection	Selector	Use the Knowledge AI feature for the AI Agent. Select one of the following options: Never — do not use the Knowledge Stores. When Required — let the AI Agent decide when querying the Knowledge Stores is required to help the user. Once for Each User Input — query the Knowledge Stores after each user input. Note that executing a query on every user input can lead to increased costs and latency.
Use AI Agent Knowledge	Toggle	Appears when you select When Required or Once for Each User Input. Enable to use the Knowledge Store configured in the AI Agent. The Knowledge Store configured within the AI Agent creation settings will be used.
Use Job Knowledge	Toggle	Appears when you select When Required or Once for Each User Input. Enable this option to configure a specific Knowledge Store for this particular job, allowing the AI Agent to access job-specific data or resources.
Job Knowledge Store	Selector	Appears when you select When Required or Once for Each User Input and Use Job Knowledge is enabled. Select a specific Knowledge Store for this AI Agent’s job.
Top K	Slider	Appears when you select When Required or Once for Each User Input. Specify how many knowledge chunks to return. Providing more results gives the AI Agent additional context but may increase noise and token usage.
Source Tags	CognigyScript	Appears when you select When Required or Once for Each User Input. Tags refine the scope of your knowledge search, including only the most relevant sections of the knowledge base to improve accuracy. Before specifying tags, ensure they were provided during the creation of the Knowledge Sources. Add tags by entering each separately and pressing `Enter`. Max 5 tags. When multiple Source Tags are specified, the Search Extract Output Node defaults to the `AND` operator, meaning it only considers Sources that have all specified tags. To change this behavior, adjust the Match Type for Source Tags parameter.
Match Type for Source Tags	Select	Appears when you select When Required or Once for Each User Input. Defines the operator for filtering Knowledge Sources by tags: AND — default; requires all tags to match. Example: filtering by `S-a` and `S-b` only includes Sources with both tags. OR — requires at least one tag to match. Example: filtering by `S-a` or `S-b` includes Sources with either tag.
Generate Search Prompt	Toggle	Appears when you select Once for Each User Input. Enabled by default. Generates a context-aware search prompt before executing the knowledge search. May increase cost and latency. By default, the prompt includes the last 7 conversation turns. This value can’t be changed.

Storage and Streaming Options

Parameter	Type	Description
How to handle the result	Select	Determine how to handle the prompt result: Store in Input — stores the AI Agent result in the Input object. To print the prompt result, refer to the configured Context key in a Say Node or enable the Output result immediately option. Store in Context — stores the result in the Context object. To print the prompt result, refer to the configured Context key in a Say Node or enable the Output result immediately option. Stream to Output — streams the result directly into the output. Chunks from the prompt response will be output into the conversation chat as soon as a Stream Buffer Flush Token is matched. You don’t need to use the AI Agent Output token and a Say Node. By default, the result is not stored in the Input or Context. To store it, enable Store Copy in Input.
Input Key to store Result	CognigyScript	Appears when Store in Input or Stream to Output is selected. The result is stored in `input.aiAgentOutput` by default. You can specify another value, but the AI Agent Output token will not work if the value is changed.
Context Key to store Result	CognigyScript	Appears when Store in Context is selected. The result is stored in `context.aiAgentOutput` by default. You can specify another key.
Stream Buffer Flush Tokens	Text Array	Appears when Stream to Output is selected. Defines tokens that trigger the stream buffer to flush to the output. Tokens can be punctuation marks or symbols, such as `\n`.
Output result immediately	Toggle	Appears when Store in Input or Store in Context is selected. Allows immediate output of results without using the Say Node and AI Agent Output token.
Store Copy in Input	Toggle	Appears when Stream to Output is selected. In addition to streaming the result, stores a copy in the Input object by specifying a value in the Input Key to store Result field.

Voice

Parameter	Type	Description
Voice Setting	Select	Configure the voice settings for the AI Agent Job. This parameter determines how the AI Agent selects the voice for text-to-speech (TTS) output. Select one of the following options: Inherit from AI Agent — use the voice settings defined in the AI Agent creation settings. Use Job Voice — apply custom voice settings specific to this job, allowing the AI Agent to adapt to the particular role it performs. For example, for a marketing AI Agent, the voice can be engaging, friendly, and persuasive. For customer support, it might be neutral, empathetic, and formal.
TTS Vendor	Dropdown	Select a TTS vendor from the list or add a custom one. Note: The AI Agent Node doesn’t support TTS Labels to distinguish configurations from the same vendor. To use TTS Labels, add a Set Session Config Node before the AI Agent Node in the Flow editor.
Custom (Vendor)	CognigyScript	Appears when Custom is selected in TTS Vendor. Specify the custom TTS Vendor. For preinstalled providers, use lowercase, for example, `microsoft`, `google`, `aws`. For custom providers, use the name defined on the Speech Service page in the Voice Gateway Self-Service Portal.
TTS Language	Dropdown	Define the language of the AI Agent output. Ensure it aligns with the preferred language of the end user.
Custom (Language)	CognigyScript	Appears when Custom is selected in TTS Language. Specify the output language. Format depends on the TTS vendor; check vendor documentation. Typical format: `de-DE`, `fr-FR`, `en-US`.
TTS Voice	Dropdown	Define the voice for AI Agent output. Customize tone, gender, style, and regional specifics to align conversations with your brand and audience.
Custom (Voice)	CognigyScript	Appears when Custom is selected in TTS Voice. Specify a custom voice, often required for region-specific voices. Format depends on TTS Vendor and typically follows `language-region-VoiceName`, for example, `de-DE-ConradNeural`, `en-US-JennyNeural`.
TTS Label	CognigyScript	Alternative name for the TTS vendor, as specified in the Voice Gateway Self-Service Portal. Use this when multiple speech services from the same vendor exist.
Disable TTS Audio Caching	Toggle	Disables TTS audio caching. By default, the setting is deactivated. In this case, previously requested TTS audio results are stored in the AI Agent cache. When a new TTS request is made and the audio text has been previously requested, the AI Agent retrieves the cached result instead of sending another request to the TTS provider. When the setting is activated, the AI Agent caches TTS results but doesn’t use them. In this case, each request is directly sent to your speech provider. Note that disabling caching can increase TTS costs. For detailed information, contact your speech provider.

Tool Settings

Parameter	Type	Description
Tool Choice	Selector	Determines how the AI Agent selects tools: Auto — the model decides whether to call a tool or return a plain-text response. Use this option for general-purpose AI Agents. For example, a support AI Agent that answers FAQs directly but calls a Knowledge tool when the question needs it. Required — the model must call one of the provided tools on every turn and won’t return a plain-text response. Use this option when the Flow must always pass through a structured tool call. For example, when the tool’s output must be retrieved and included in the response before anything is returned to the user. Selecting this option can cause an infinite tool-calling loop. See Avoiding infinite loops when Tool Choice is Required for mitigation options. None — the model ignores all configured tools and returns only a plain-text response. Use this option to temporarily disable tool use without removing the tool configuration, for example, during testing or debugging. The options in Tool Choice map to the following LLM function-calling modes: Auto — `mode: AUTO` Required — `mode: ANY` None — `mode: NONE` Availability of these modes depends on your LLM provider. Refer to your provider’s documentation to confirm support.
Use Strict Mode	Toggle	When enabled, strict mode (if supported by the LLM provider) ensures that arguments passed to a tool call precisely match the expected parameters. This helps prevent errors but may slightly delay responses, especially during the first call after making changes.

Image Handling

Parameter	Type	Description
Process Images	Toggle	Enables the AI Agent to read and understand image attachments. Ensure that your LLM provider supports image processing (refer to your provider’s documentation). Also verify that attachments are supported and activated in your Endpoint, such as Webchat.
Images in Transcript	Selector	Configures how images older than the last turn are handled to reduce token usage: Minify — reduces the size of these images to 512×512 px. Drop — excludes the images. Keep — sends the maximum size (consumes more tokens). Limitations and token consumption depend on the LLM used.

Advanced

Parameter	Type	Description
LLM	Selector	Select a model that supports the AI Agent Node feature. The selected Default model is the one specified in Settings > Generative AI Settings of your Project. Choose the model you added earlier while configuring the Agentic AI feature. This model will manage your AI Agent.
AI Agent Base Version	Selector	Select the base version of the AI Agent to use: Fixed Version — choose a specific version, for example, `1.0`, to ensure stability and avoid potential breaking changes. Use this version in production environments or critical workflows. The version dropdown will be updated as future AI Agent Node versions are released. Latest — use the most recent version of the AI Agent Node. This gives access to the latest features but may require manual updates if breaking changes occur. When upgrading to a fixed version or switching to the latest, always test your AI Agent carefully to ensure compatibility.
Timeout	Number	Define the maximum number of milliseconds to wait for a response from the LLM provider.
Maximum Completion Tokens	Slider	Set the maximum number of tokens that can be used during a process to manage costs. If the limit is too low, the output may be incomplete. For example, setting 100 tokens roughly corresponds to 100 words, depending on language and tokenization.
Temperature	Slider	Define the sampling temperature, ranging from 0 to 1. Higher values, for example, 0.8, make output more random; lower values, for example, 0.2, make it more focused and deterministic.
Include Rich Media Context	Toggle	Controls whether the text from the Textual Description field in Say, Question, and Optional Questions Nodes is added to the AI Agent’s prompt. This text provides AI Agents with additional information, improving their responses. If you have filled in a Textual Description field in other Nodes, this text is added to the prompt as context for rich media, such as Text with Quick Replies. If the Textual Description field is empty, the button titles and alt text from the rich media are added to the prompt. By default, the Include Rich Media Context parameter is active. When this parameter is inactive, nothing related to the rich media is added to the prompt. Examples: If Textual Description is filled in: Textual Description: `Select your preferred delivery option: Standard Delivery or Express Delivery`. Quick Replies buttons: `Standard Delivery`, `Express Delivery`. Context added to the prompt: `Select your preferred delivery option: Standard Delivery or Express Delivery`. If Textual Description is empty: Textual Description: empty. Quick Replies buttons: `Standard Delivery`, `Express Delivery`. Context added to the prompt: `Standard Delivery`, `Express Delivery`. If Include Rich Media Context is inactive: No information related to the rich media is added to the prompt.

Error Handling

Parameter	Type	Description
Log to System Logs	Toggle	Log errors to the system logs. They can be viewed on the Logs page of your Project. This parameter is inactive by default.
Store in Input	Toggle	Store errors in the Input object.
Select Error Handling Approach	Select	Choose one of the Error Handling options: Stop Flow Execution — terminate the current Flow execution. Continue Flow Execution — allow the Flow to continue executing, bypassing the error and proceeding to the next steps. Go to Node — redirect the workflow to a specific Node in the Flow, useful for error recovery or custom error handling.
Select Flow	Select	Appears when Go to Node is selected. Choose a Flow from the available options.
Select Node	Select	Appears when Go to Node is selected. Choose a Node from the available options.
Error Message (optional)	CognigyScript	Add an optional message to the output if the AI Agent Node fails.

Custom Options

These options let you use parameters that aren’t included in the AI Agent Node or overwrite set configurations.

Parameter	Type	Description	Example
Custom Options	JSON	Set custom parameters to the LLM configuration. You can set individual parameters as well as entire functions. These parameters customize the behavior of the model, such as adjusting `temperature`, `top_k`, or `presence_penalty`. This field overrides the parameters set in the AI Agent Node. To view the full list of available parameters for your model, refer to the LLM provider’s API documentation, for example, OpenAI or Azure OpenAI.	`{ "model": "gpt-4o", "temperature": 0.7, "max_tokens": 4000 }`
Custom Request Options	JSON	Set custom parameters to customize the request to the LLM provider. These parameters override the configurations set in this Node. For example, setting a `{ "stream": true }` parameter overrides the Output result immediately option. For more information, refer to the LLM provider’s API documentation.	`{ "stream": true }`, `{ "headers": { "Authorization": "Bearer <token>" } }`

Forcing Model VersionsYou can force the AI Agent Node to use a specific model version by including it in the Custom Options. This means that the AI Agent Node will use the specified version of the language model instead of the default or any other available versions. This allows for more control over the behavior of the AI Agent Node, ensuring it uses the desired model version for generating prompts or responses.You can use models from any LLM provider supported by Cognigy, including those not yet directly integrated. However, you can only replace a model with another from the same provider.Let’s consider an example with Anthropic: You can force the AI Agent Node to use the model version claude-opus-4-1-20250805, despite the LLM resource defaulting to the claude-opus-4-5-20251101 model:

Create an Anthropic LLM resource for Claude, for example, claude-opus-4-5-20251101.
Create a Flow and add an AI Agent Node to it.
In the AI Agent Node, select the model claude-opus-4-5-20251101 from the Large Language Model list.
In the Custom Model Options field, add { "model": "claude-opus-4-1-20250805" } to force the use of the claude-opus-4-1-20250805 model.
Click Save Node.

The AI Agent Node now utilizes the claude-opus-4-1-20250805 model.Below, you’ll find documentation for supported models:

Debug Settings

Parameter	Type	Description
Log Job Execution	Toggle	Send a debug message with the current AI Agent Job configuration. The message appears in the Interaction Panel when debug mode is enabled. The parameter is active by default.
Log Knowledge Results	Toggle	Send a debug message containing the result from a knowledge search. The message appears in the Interaction Panel when debug mode is enabled. The parameter is inactive by default.
Show Token Count	Toggle	Send a debug message containing the input, output, and total token count. The message appears in the Interaction Panel when debug mode is enabled. Cognigy.AI uses the GPT-3 tokenizer algorithm, so actual token usage may vary depending on the model used. The parameter is inactive by default.
Log System Prompt	Toggle	Send a debug message containing the system prompt. The message appears in the Interaction Panel when debug mode is enabled. The parameter is inactive by default.
Log Tool Definitions	Toggle	Send a debug message containing information about the configured AI Agent tools. The message appears in the Interaction Panel when debug mode is enabled. The parameter is inactive by default.
Log LLM Latency	Toggle	Send a debug message containing key latency metrics for the request to the model, including the time taken for the first output and the total time to complete the request. The message appears in the Interaction Panel when debug mode is enabled. The parameter is inactive by default.
Send request logs to Webhook	Toggle	Send the request sent to the LLM provider and the subsequent completion to a webhook service, including metadata, the request body, and custom logging data. With this parameter, you can use a webhook service to view detailed logs of the request to the LLM. The parameter is inactive by default.
Webhook URL	CognigyScript	Enter the URL of the webhook service to send the request logs to.
Custom Logging Data	CognigyScript	Enter custom data to send with the request to the webhook service.
Condition for Webhook Logging	CognigyScript	Enter the condition for the webhook logging.
Webhook Headers	Input fields	Enter the headers to send with the request to the webhook service. Use the Key and Value fields to enter a header. The Value field supports CognigyScript. After entering the header key, new empty Key and Value fields are automatically added, in case you need to add more headers. Alternatively, you can click Show JSON Editor and add input examples in the code field.

Child Nodes

Tool

Tools are child Nodes of AI Agent Nodes. They define the actions the AI Agent can take. If an AI Agent wants to execute the tool, the branch below the child Node is executed. At the end of a tool branch, it is advisable to use a Resolve Tool Action Node to return to the AI Agent. Clicking the Tool Node lets you define a tool, set its parameters, and allows debugging by enabling detailed messages about the tool’s execution.

Tool

Parameter	Type	Description
Tool ID	CognigyScript	Provide a meaningful name as a Tool ID. This ID can contain only letters, numbers, underscores (`_`), or dashes (`-`). For example, `update_user-1`.
Description	CognigyScript	Provide a detailed description of what the tool does, when it should be used, and its parameters.

Parameters

Configure the parameters that the AI Agent will collect before the tool is called. You can switch between the Graphical and JSON editors. When editing the JSON, follow the JSON Schema specification.

Parameter	Type	Description
Use Parameters	Toggle	Activate this toggle to add parameters in addition to the tool name and description. The AI Agent will collect all data it needs and call a Tool with these parameters filled as arguments. These values can be accessed directly in the `input.aiAgent.toolArgs` object.
Name	Text	Specify the name of the parameter. The name should be clear and concise, and describe the purpose of the parameter.
Type	Selector	Select a type of the parameter: String — a sequence of characters. For example, `"hello"`, `"123"`. Number — a numerical value, which can be either an integer (for example,`5`) or a floating point number (for example, `3.14`). Boolean — a logical value representing `true` or `false`. Array — a collection of elements, which can contain multiple values of any type. For example, `["apple", "banana", "cherry"]`. Object — a collection of key-value pairs, where each key is a string and the value can be of any type. For example, `{"name": "John", "age": 30}`.
Description	Text	Explain what the parameter means by providing a brief description of the parameter’s usage.
Enum (optional)	Enum	Define a set of values that the parameter can accept. The enum restricts the input to one of the specified values, ensuring only valid options are chosen. The enum is only available for string-type parameters in the Graphical editor. For other types, use the JSON editor. May not be supported by all LLM providers.
Add Parameter	Button	Add a new parameter.

Debug Settings

Parameter	Type	Description
Debug Message when called	Toggle	Enable the output of a debug message when the tool is called to provide detailed information about the tool call.

Advanced

Parameter	Type	Description
Condition	CognigyScript	The tool will be enabled only if the condition is evaluated as true. If false, the tool isn’t part of the AI Agent’s Tools within this execution. For example, when using the `unlock_account` tool, you can specify a condition like `context.accountStatus === "locked"`. This checks the value in the context, and if it is missing or different, the tool will not be enabled.

MCP Tool

MCP Tool Nodes are child Nodes of AI Agent Nodes. The MCP Tool Nodes connect to a remote MCP server to load tools that the AI Agent can execute. If an AI Agent wants to execute one of the loaded tools, the branch below the MCP Tool Node is triggered. Clicking the MCP Tool Node lets you define the connection, filter loaded tools, and allows debugging by enabling detailed messages about the tool’s execution.

MCP Tool

Parameter	Type	Description
Name	CognigyScript	Provide a name for the MCP connection. This name helps you identify the source of the loaded tool.
MCP Server SSE URL	CognigyScript	Provide the URL to an SSE (Server-Sent Events) endpoint from a remote MCP server. Ensure that you connect only to trusted MCP servers.
Timeout	Slider	Set the timeout time for the MCP connection in seconds.

Authentication

Parameter	Type	Description
Authentication Type	Selector	The authentication type to use for the MCP server connection. Select one of the following options: None — no authentication. This option is used by default. OAuth2 — authenticate using OAuth 2.0, which provides improved security and control compared to API keys. OAuth 2.0 supports scoped permissions, expiring tokens, and reduced exposure through short-lived tokens. If you want to use a different authentication method, such as an API key, you can add it as a custom header in Custom Headers of the Advanced section.
OAuth2 Parameters	Selector	Opens the fields required to configure OAuth 2.0 authentication. These fields allow the AI Agent to securely request and use access tokens when communicating with the MCP server. Configure the following fields: Connection Name — enter a descriptive name for the connection, for example, `MCP Tool OAuth`. OAuth URL — enter the token endpoint URL exposed by the MCP server, for example: `https://mcp.example.com/oauth2/token`. Client ID — enter the application (client) ID issued by the MCP server. Client Secret — enter the application secret issued by the MCP server. Keep it secure. Scope — add a list of scopes that define the permissions required by your application, for example: `read write admin`. Separate multiple scopes with spaces.

Debug Settings

Parameter	Type	Description
Debug Loaded Tools	Toggle	Enable this parameter to display a debug message listing all tools loaded from the MCP server. The debug message also includes tools filtered out in the Advanced section. This parameter shows whether tools were loaded from the cache or directly from the MCP server.
Debug with Parameters	Toggle	Enable this parameter to include the Tool Parameters in the debug message.
Debug calling Tool	Toggle	Enable the output of a debug message when the tool is called to provide detailed information about the tool call.

Advanced

Parameter	Type	Description
Cache Tools	Toggle	Disables caching of loaded tools while developing. Ensure that caching is enabled in production for performance reasons. The caching time is 10 minutes. In debug mode, you can verify whether the cache was used. To do this, make sure Debug Loaded Tools is enabled. For more information, see the Debug Settings section.
Condition	CognigyScript	Sets the condition under which the tool will be activated. If the condition is evaluated as false, the tool isn’t part of the AI Agent’s Tools during execution. For example, when using the `unlock_account` tool, you can specify a condition like `context.accountStatus === "locked"`. This checks the value in the context, and if it is missing or different, the tool will not be enabled.
Tool Filter	Select	Controls if tools should be excluded from execution. You can select one of the following options: None — no tool filtering is applied, and all tools are available for execution. This option is selected by default. Whitelist — only tools on the list are allowed for execution, while all other tools are excluded. Blacklist — tools on the list are excluded from execution, while all other tools remain available.
Blacklist	CognigyScript	This parameter appears if you select Blacklist in Tool Filter. Specify the tools that should be blocked from execution. Specify only one tool per field.
Whitelist	CognigyScript	This parameter appears if you select Whitelist in Tool Filter. Specify the tools you want to allow for execution. Specify only one tool per field.
Custom Headers	-	Sets custom authentication headers to send with the request to the MCP server. Use the Key and Value fields to enter a header. The Value field supports CognigyScript. After entering the header key, new empty Key and Value fields are automatically added, in case you need to add more headers. Alternatively, you can click Show JSON Editor and enter the headers in the code field.

Call MCP Tool

In the Flow editor, when you add an MCP Tool Node, a Call MCP Tool Node is automatically created below it. These two Nodes work together to define and execute the chosen tool. The Call MCP Tool Node sets the actual execution point of the chosen tool. This way, you can verify or modify the tool call arguments in the input.aiAgent.toolArgs object, or add a Say Node before the tool call. When the Call MCP Tool Node is executed, the tool call is sent to the remote MCP server, where the Tool is executed remotely with any arguments set by the AI Agent. To return the tool result to the AI Agent, the Resolve Immediately setting can be enabled to send the full result returned from the remote MCP server to the AI Agent. As an alternative, use a Resolve Tool Action Node to return a specific result to the AI Agent.

Call MCP Tool

Parameter	Type	Description
Resolve Immediately	Toggle	Enable this parameter to immediately resolve the tool action with the full result as the tool answer.

Storage Options

Parameter	Type	Description
How to handle the result	Select	Determine how to handle the MCP tool call result: Store in Input — stores the result in the Input object. Store in Context — stores the result in the Context object.
Input Key to store Result	CognigyScript	The parameter appears when Store in Input is selected. The result is stored in the `input.aiAgent.toolResult` object by default. You can specify another value, but the MCP Tool Result Token won’t work if the value is changed.
Context Key to store Result	CognigyScript	The parameter appears when Store in Context is selected. The result is stored in the `context.aiAgent.toolResult` object by default.

Debug Settings

Parameter	Type	Description
Debug Tool Result	Toggle	Enable the output of a debug message with the tool call result after a successful call.

Knowledge Tool

The Knowledge Tool Node is a child Node of the AI Agent Node. It allows the AI Agent to directly access Knowledge Stores to provide context-aware responses. In the Knowledge Tool Node, you can select the Knowledge Store to search, Source Tags to refine the search, and allows for detailed debug messages about the tool’s execution.

Knowledge Tool

Parameter	Type	Description
Knowledge Store	Selector	Select a Knowledge Store.
Tool ID	CognigyScript	Enter a name as a tool ID. This ID can contain only letters, numbers, underscores (`_`), or dashes (`-`). If you use more than one Knowledge tool, the tool ID provides context to trigger the correct Knowledge tool. In this case, enter a clear tool ID for each Knowledge tool, for example, `search_appliances`
Description	CognigyScript	Enter instructions to guide the AI Agent to call the Knowledge tool. The description field provides context to trigger the Knowledge tool. If you want to use more than one Knowledge tool, enter clear instructions for the cases when each Knowledge tool should be used. For example, `Find the answer to prompts or questions about appliances by searching the attached data sources. Use this tool when a customer asks about appliance items such as washing machines, dryers, and other household appliances. Focus exclusively on a knowledge search and does not execute tasks like small talk, calculations, or script running.`

Debug Settings

Parameter	Type	Description
Debug Message when called	Toggle	Enable the output of a debug message when the tool is called to provide detailed information about the tool call.

Advanced

Parameter	Type	Description
Top K	Slider	Set how many Knowledge Chunks to return. Providing more results gives the AI Agent additional context, but it also increases noise and token usage.
Store Location	Selector	Select whether and where to store the knowledge search results. Select one of the following options: Don’t store — the content isn’t stored. This option is set by default. Input — the content is stored in the Input object. Context — the content is stored in the Context object.
Input Key to store result	CognigyScript	Appears when Store Location is set to Input. The property in the Input object where the result is stored. For example, `input.knowledgeSearch`.
Context Key to store result	CognigyScript	Appears when Store Location is set to Context. The property in the Context object where the result is stored. For example, `context.knowledgeSearch`.
Source Tags	CognigyScript	Enter Knowledge Source Tags to refine the scope of your knowledge search, including only the most relevant Knowledge Chunks in the Knowledge Store. Before entering tags, ensure they are included in the Knowledge Sources. Add tags by entering each separately and pressing `Enter`. Max 5 tags. When multiple Source Tags are specified, the Search Extract Output Node defaults to the `AND` operator, meaning it only considers Sources that have all specified tags. To change this behavior, adjust the Match Type for Source Tags parameter.
Match type for Source Tags	Selector	The operator to filter Knowledge Sources by Source Tags. Select one of the following options: AND — the default value, requires all Source Tags to match across multiple Knowledge Sources. Consider the following example: there are Knowledge Sources with Source Tags `S-a`, `S-b`, and `S-c`. When you use the `AND` operator to filter by `S-a` and `S-b`, only Sources with both Tags `S-a` and `S-b` are included in the search results. OR — requires at least one Source Tag to match across multiple Knowledge Sources. Consider the following example: there are Knowledge Sources with Source Tags `S-a`, `S-b`, and `S-c`. When you use the `OR` operator to filter by `S-a` or `S-b`, any Source with either Tag `S-a` or `S-b` is included in the search results.
Condition	CognigyScript	The Knowledge tool is activated only if the condition is evaluated as true. If false, the tool isn’t included in the current execution. For example, when using the Knowledge tool, you can enter a condition such as `context.productCategory === "appliances"`. This checks the value in the context, and if it is missing or different, the tool isn’t activated.

Send Email Tool

The Send Email tool lets your AI Agent send emails directly to users. The Send Email tool uses the same configuration and restrictions as the Email Notification Node but adds more flexibility. While the Email Notification Node sends emails at a fixed step in a Flow, the Send Email tool allows the AI Agent to send emails dynamically, based on user input, conversation context, or instructions. This tool makes automation more flexible and minimizes extra Flow steps.

Tool

Parameter	Type	Description
Tool ID	CognigyScript	Provide a meaningful name as a tool ID. This ID can contain only letters, numbers, underscores (`_`), or dashes (`-`). The default name is `send_email`.
Description	CognigyScript	Provide a detailed description of what the tool should do. The default description is `Create and send a new email message.`
Recipient TO Email Addresses	CognigyScript	A comma-separated list of email addresses to which the email will be sent.

Debug Settings

Parameter	Type	Description
Debug Message when called	Toggle	Enable the output of a debug message when the tool is called to provide detailed information about the tool call.

Advanced

Parameter	Type	Description
Condition	CognigyScript	The tool will be enabled only if the condition is evaluated as true. If false, the tool isn’t part of the AI Agent’s Tools within this execution. For example, when using the `unlock_account` tool, you can specify a condition like `context.accountStatus === "locked"`. This checks the value in the context, and if it is missing or different, the tool will not be enabled.

Handover to AI Agent Tool

The Handover to AI Agent tool lets you transfer a conversation to another AI Agent in the same or a different Flow. This approach ensures the conversation keeps its context, different AI Agents can handle specific tasks, and multi-step conversations run smoothly across Flows.

Tool

Parameter	Type	Description
Tool ID	CognigyScript	Provide a meaningful name as a tool ID. This ID can contain only letters, numbers, underscores (`_`), or dashes (`-`). The default name is `handover_to_ai_agent`.
Description	CognigyScript	Describe what the receiving AI Agent should do. For example: `Handle product recommendations`, `Perform technical troubleshooting`, or `Assist with billing questions`. Be specific so the handover rules clearly indicate when this AI Agent should take over.
Select Flow	Selector	Select the target Flow to hand over to. By default, all Flows in the Project are displayed in the list. The selected Flow must contain an AI Agent Node.
Select Node	Selector	Select the AI Agent Node to hand over to.

Debug Settings

Parameter	Type	Description
Debug Message when called	Toggle	Enable the output of a debug message when the tool is called to provide detailed information about the tool call.

Advanced

Parameter	Type	Description
Condition	CognigyScript	The tool will be enabled only if the condition is evaluated as true. If false, the tool isn’t part of the AI Agent’s Tools within this execution. For example, when using the `unlock_account` tool, you can specify a condition like `context.accountStatus === "locked"`. This checks the value in the context, and if it is missing or different, the tool will not be enabled.

Handover to Human Agent Tool

The Handover to Human Agent tool lets you transfer a conversation to a human agent through handover providers. This tool allows your AI Agents to refer complex tasks to a human agent if they can’t address the user’s request.

Tool

Parameter	Type	Description
Tool ID	CognigyScript	Provide a meaningful name as a tool ID. This ID can contain only letters, numbers, underscores (`_`), or dashes (`-`). The default name is `handover_to_human_agent`.
Description	CognigyScript	Describe the situation when the AI Agent should refer to a human agent. For example: `Use this tool if the user explicitly asks for a human.`, or `Use this tool if you fail to answer the user's question three times.`. Be specific so the handover rules clearly indicate when the conversation should be handed over to the receiving human agent.
Handover Provider	Selector	Select the handover provider from the list. The Legacy option is selected by default, meaning the node configuration points to the settings in Deploy > Endpoints > Handover Settings. To select a provider from the list, you need to either migrate your settings to the Handover Providers interface or create this handover provider from scratch.
Handover Accepted Message	CognigyScript	The message to be outputted when the handover is requested.
Repeat Handover Accepted Message	Toggle	Enable to repeatedly output the Handover Accepted Message if the user sends a message while waiting in the queue for an agent.

Live Agent Settings

Parameter	Description
Live Agent Inbox Id	Enter the Inbox ID that you obtained in the previous step.
Skills	Enter a list of skills that should be used to filter the available agents. For example, `technical support, billing`.
Languages	Enter a list of languages that should be used to filter the available agents. For example, `english, spanish`.
Priority	Select a priority for the conversation from the list. For example, `Urgent`.
Get Queue Position	Enable the system to retrieve the end user’s current queue position. This parameter is inactive by default.
Update Interval	Specify the interval, in seconds, for how often to receive updates on the queue status. This parameter appears if Get Queue Position is selected.
Get Estimated Wait Time	Enable the retrieval of the estimated wait time for the end user. This parameter is inactive by default.
Wait Time Update Interval	Set the interval, in seconds, for how often to receive updates on estimated wait time. This parameter appears if Get Estimated Wait Time is selected.
Alternative Update	The alternative update options when certain conditions are met. This parameter is inactive by default.
Maximum Queue Position	Set the threshold for the maximum queue position. If this threshold is reached, the alternative text is sent. This parameter appears if Alternative Update is selected.
Maximum Estimated Wait Time	Define the maximum estimated wait time in milliseconds. If this duration is exceeded, the alternative text is sent. This parameter appears if Alternative Update is selected.
Alternative Text	The message to be sent when either the maximum queue position or maximum wait time is reached. This parameter appears if Alternative Update is selected.
Enable User Connects Message	Notify human agents when an end user reconnects to the chat. The parameter is enabled by default. When the parameter is enabled, the message `User joined the conversation` appears in the chat as soon as the end user returns to the chat tab by clicking the ← (back arrow) at the top bar in the browser, after having opened a new URL on the same tab as the chat.
Enable User Disconnects Message	Notify human agents when an end user disconnects from the chat. The parameter is enabled by default. When the parameter is enabled, the message `User left the conversation` is sent as soon as the end user closes the tab with the chat or switches to a new URL address within the current tab.

For more information, read the Live Agent Handover Setup and Real-Time Queue Notifications documentation.

Chatwoot Settings

Parameter	Description
Chatwoot Inbox Id	Enter the Chatwoot Inbox ID. You can find the Inbox ID in your Chatwoot URL. For example, `https://app.chatwoot.com/app/account/6607/inbox/5446`, where the Inbox ID is `5446`. For more information, read the Chatwoot handover provider documentation.

Salesforce Chat Settings

Parameter	Description
Send Transcript as first message	Activate this parameter to allow Salesforce to receive the conversation transcript as the first message. This setting is turned off by default.
Button ID	Enter the ID of the Button you created in the Salesforce installation. This setting will override the default Button ID that you specified in the Endpoint configuration. You can use different Button IDs for individual Handover to Agent Nodes.
Pre-chat Entities	Enter the pre-chat entities. For more information, read the Salesforce Handover documentation.
Pre-chat Details	Enter the pre-chat details. For more information, read the Salesforce Handover documentation.

NiCE CXone Settings

Parameter	Description
Send Transcript as first message	Activate this parameter to allow NiCE CXone to receive the conversation transcript as the first message when the handover begins. This setting is turned on by default.
Display Agent Details	Display the human agent’s name and avatar from NiCE CXone in the chat for the end user. This parameter is disabled by default.
Custom Attributes	Add custom attributes in JSON format to include additional information the handover. For more information, refer to NiCE CXone.

Example for the Custom Attributes parameter:

{
  "section": "section A",
  "region": "Europe"
}

Genesys Settings

Parameter	Description
Language	Specify a language for the conversation. For example, `english`, `spanish`, `german`.
Skills	Define skills for the conversation. For example, `escalation`.
Priority	Set the priority for the conversation. For example, `1`. If a priority is set, it triggers a flow in Genesys to prioritize or de-prioritize the conversation within the queue. Note that this functionality requires the appropriate flow to be set up in Genesys.
Enable User Connects Message	Notify human agents when an end user reconnects to the chat. The parameter is enabled by default. When the parameter is enabled, the message `User joined the conversation` appears in the chat as soon as the end user returns to the chat tab by clicking the ← (back arrow) at the top bar in the browser, after having opened a new URL on the same tab as the chat.
Enable User Disconnects Message	Notify human agents when an end user disconnects from the chat. The parameter is enabled by default. When the parameter is enabled, the message `User left the conversation` is sent as soon as the end user closes the tab with the chat or switches to a new URL address within the current tab.
Custom Attributes	Add custom attributes in the `Key: Value` format, which allows you to include additional information.

Example for the Custom Attributes parameter:

{
  "section": "section A",
  "region": "Europe"
}

For more information, read the Genesys Cloud Guest Chat and Genesys Cloud Open Messaging documentation.

8x8 Settings

Parameter	Description
8x8 Channel Id	Specify the channel ID that you created during the 8x8 configuration. You can find this ID in the 8x8 admin console. Navigate to Channels > Chat API. In the channel list, find the channel that you created. Copy the ID from the channel row.
8x8 Queue Id	Specify the header value required for authenticating API calls to the 8x8 system. You can find this ID in the 8x8 admin console. Navigate to Channels > Chat API. In the channel list, find the channel that you created. Copy the Queue ID from the channel row.
8x8 JSON properties	Extend 8x8 properties with custom JSON.

For more information, read the 8x8 Handover Setup documentation.

RingCentral Engage Settings

Parameter	Type	Description
Additional Category Ids	CognigyScript	IDs to be passed to the RingCentral Engage handover provider.
Enable User Connects Message	Toggle	Notify human agents when an end user reconnects to the chat. The parameter is enabled by default. When the parameter is enabled, the message `User joined the conversation` appears in the chat as soon as the end user returns to the chat tab by clicking the ← (back arrow) at the top bar in the browser, after having opened a new URL on the same tab as the chat.
Enable User Disconnects Message	Toggle	Notify human agents when an end user disconnects from the chat. The parameter is enabled by default. When the parameter is enabled, the message `User left the conversation` is sent as soon as the end user closes the tab with the chat or switches to a new URL address within the current tab.

For more information, read the RingCentral Engage Integration documentation.

Cancel Handover Options

Parameter	Type	Description
Cancel Intent	CognigyScript	The Intent the user has to trigger to cancel the Handover request.
Cancel Button Text	CognigyScript	The text for a quick reply button that cancels the handover request when the user clicks the button.

On Resolve Options

Parameter	Type	Description
Flow Continuation	List	Below this Node – the user is taken to the Node below the Handover Node once the agent resolves the conversation. In this case, the user would continue in a different flow, but the starting point would be the Node below the Handover Node. At current AgentInject Entrypoint – the user continues the chat at the current agent inject entrypoint. This option allows the agent to guide the user to a specific part of the chat and then give control back to the user.
Send resolve event to Virtual Agent	Toggle	Sending an event when the AI Agent resolves a conversation.

Event Settings

Parameter	Type	Description
Send Queue Event	Toggle	Sends an event to the Flow once the handover is queued.
Send Active Event	Toggle	Sends an event to the Flow once the handover is active.

Debug Settings

Parameter	Type	Description
Debug Message when called	Toggle	Enable the output of a debug message when the tool is called to provide detailed information about the tool call.

Advanced

Parameter	Type	Description
Condition	CognigyScript	The tool will be enabled only if the condition is evaluated as true. If false, the tool isn’t part of the AI Agent’s Tools within this execution. For example, when using the `unlock_account` tool, you can specify a condition like `context.accountStatus === "locked"`. This checks the value in the context, and if it is missing or different, the tool will not be enabled.

Execute Workflow Tool

The Execute Workflow tool lets the AI Agent execute another Flow. After the target Flow executes, the conversation returns to the AI Agent. The target Flow inherits the Context object from the AI Agent. If the Context object is changed during the target Flow execution, these changes are also available to the AI Agent.

Parameter	Description
Tool ID	Enter a meaningful name as a tool ID. This ID can contain only letters, numbers, underscores (`_`), or dashes (`-`). The default name is `execute_workflow`.
Description	Describe when to trigger the AI Agent to execute the target Flow. For example, if you have a specific Flow for dealing with package returns, enter: `Use this tool if the user explicitly asks to return a package.`. Be specific so the AI Agent only executes the target Flow when necessary.
Target Flow	Select the target Flow that the AI Agent executes when this tool is called. Click to open the target Flow.
Select Node	Select the target Node that the AI Agent executes when the target Flow is called. You must set the Node you want to select as an Entrypoint with the Set Entrypoint setting before you can select it.

Debug Settings

Parameter	Type	Description
Debug Message when called	Toggle	Activate the output of a debug message when the tool is called to provide detailed information about the tool call.

Advanced

Parameter	Type	Description
Parse Intents	Toggle	Sets whether Intents should be parsed in the target Flow. This parameter is activated by default. If this parameter is enabled, Cognigy NLU reparses the Intents in the target Flow based on `text` in the Input object and generates Intent scores using the Intents in the target Flow instead of the ones in the Flow the AI Agent is currently in.
Parse Slots	Toggle	Sets whether Slots should be parsed in the target Flow. This parameter is activated by default. If this parameter is enabled, Cognigy NLU reparses the Slots in the target Flow based on `text` in the Input object and generates Slot scores using the Slots in the target Flow instead of the ones in the Flow the AI Agent is currently in.
Absorb Context	Toggle	Sets whether the default Context object of the target Flow is used in the context of the Flow the AI Agent is currently in. If the default Context of the target Flow has a value, it is copied into the Context object of the AI Agent as soon as the target Flow is executed.

Examples

Tool

In this example, the unlock_account tool unlocks a user account by providing the email and specifying the reason for the unlocking. Parameter configuration in JSON:

{
  "type": "object",
  "properties": {
    "email": {
      "type": "string",
      "description": "User's login email for their account."
    }
  },
  "required": ["email"],
  "additionalProperties": false
}

where:

type — the type for a tool parameter schema, which must always be object.
properties — defines the parameters for the tool configuration:
- email — a required tool parameter for unlocking the account.
  - type — defines the data type for the tool parameter.
  - description — a brief explanation of what the property represents.
required — lists email as a required parameter, ensuring that this value is always provided when the tool is called.
additionalProperties — ensures that the input contains only the email tool parameter, and no others are allowed.

MCP Tool and Call MCP Tool

Use Zapier’s Remote MCP server

You can create a custom MCP server with personalized tools by using one of the provided SDKs. For a quicker setup, you can use a third-party provider. For example, Zapier allows you to configure your MCP server, which can be connected to multiple application APIs. To use Zapier as a remote MCP server, follow these steps:

Log in to your Zapier account, go to the MCP settings page, and configure your MCP server.
Copy the SSE URL and paste it into the MCP Server SSE URL field of your MCP Tool Node.
In the Zapier MCP settings, create an action to connect to various APIs. For example, you can create a Zapier action to automatically generate a Google Doc.

Once the setup is complete, the configured MCP Actions will be loaded when the AI Agent is executed. You will see the following debug message in the Interaction Panel, indicating the result of the tool call after a successful execution:

AI Agent: MCP Tool
Fetched tools from MCP Tool "zapier"

- google_docs_create_document_from_: Create a new document from text. Also supports limited HTML.
  Parameters:
  - title (string): Document Name
  - file (string): Document Content

Knowledge Tool

In this example, you have two Knowledge tools to search two different Knowledge Stores. Each Knowledge Store refers to a different product category, in this example, appliances and furniture. To guide the AI Agent to use the correct Knowledge tool, enter a clear tool ID and description:

Knowledge Tool 1:
- Tool ID: search_appliances
- Description: Find the answer to prompts or questions about appliances by searching the attached data sources. Use this tool when a customer asks about appliance items such as washing machines, dryers, and other household appliances. Focus exclusively on a knowledge search and does not execute tasks like small talk, calculations, or script running.
Knowledge Tool 2:
- Tool ID: search_furniture
- Description: Find the answer to prompts or questions about furniture by searching the attached data sources. Use this tool when a customer asks about furniture items such as sofas, tables, and other items. Focus exclusively on a knowledge search and does not execute tasks like small talk, calculations, or script running.

Avoiding Infinite Loops when Tool Choice is Required

When Tool Choice is set to Required, the model must call a tool on every turn. After a tool branch executes and a Resolve Tool Action Node returns the result to the AI Agent Node, the model still can’t respond with plain text. Instead, it must call another tool. If every tool branch loops back through a Resolve Tool Action Node, the AI Agent keeps calling tools without ever producing a response. This loop continues until the Flow times out and can consume a large number of tokens.

Avoid setting Tool Choice to Required unless your use case requires the model to always call a tool. If you do use this setting, ensure that at least one tool branch exits the loop without passing through a Resolve Tool Action Node.

To prevent an infinite loop, use one of the following approaches:

Option 1: Change Tool Choice to Auto

Set Tool Choice to Auto unless your use case strictly requires the model to always use a tool. With Auto, the model calls a tool when relevant and returns a plain-text response when the tool isn’t needed, allowing the Flow to exit normally.

Option 2: Add an Exit Tool

Keep Tool Choice set to Required and add a dedicated tool that the model can call to end the loop. This tool branch must not include a Resolve Tool Action Node, so execution doesn’t return to the AI Agent Node. Instead, the branch must end with a Say Node or another output Node that produces the final response.Example exit tool configuration:

Field	Value
Tool ID	`finish_response`
Description	`Call this tool when you have gathered all the information needed and are ready to respond to the user.`

The resulting Flow structure looks like this:

AI Agent Node (Tool Choice: Required)
├── search_knowledge → Resolve Tool Action → [returns to AI Agent Node]
└── finish_response  → Say Node            → [end of Flow, no Resolve Tool Action]

The model calls search_knowledge one or more times to gather information, then calls finish_response to exit the loop and deliver the response.

Get AI Agent Jobs and Tools via API

You can retrieve all job configurations and associated tools for a specific AI Agent via the Cognigy.AI API GET /v2.0/aiagents/{aiAgentId}/jobs request. The response includes each job’s configuration details and a list of available tools.

Overview

AI Agents

Human Escalation

Platform Features

For Developers

Administration and Installation

Description

Limitations

Parameters

Parent Node

Child Nodes

Tool

MCP Tool

Call MCP Tool

Knowledge Tool

Send Email Tool

Handover to AI Agent Tool

Handover to Human Agent Tool

Execute Workflow Tool

Examples

Tool

MCP Tool and Call MCP Tool

Use Zapier’s Remote MCP server

Knowledge Tool

Avoiding Infinite Loops when Tool Choice is Required

Get AI Agent Jobs and Tools via API

More Information

​Description

​Limitations

​Parameters

​Parent Node

​Child Nodes

​Tool

​MCP Tool

​Call MCP Tool

​Knowledge Tool

​Send Email Tool

​Handover to AI Agent Tool

​Handover to Human Agent Tool

​Execute Workflow Tool

​Examples

​Tool

​MCP Tool and Call MCP Tool

​Use Zapier’s Remote MCP server

​Knowledge Tool

​Avoiding Infinite Loops when Tool Choice is Required

​Get AI Agent Jobs and Tools via API

​More Information

Description

Limitations

Parameters

Parent Node

Child Nodes

Tool

MCP Tool

Call MCP Tool

Knowledge Tool

Send Email Tool

Handover to AI Agent Tool

Handover to Human Agent Tool

Execute Workflow Tool

Examples

Tool

MCP Tool and Call MCP Tool

Use Zapier’s Remote MCP server

Knowledge Tool

Avoiding Infinite Loops when Tool Choice is Required

Get AI Agent Jobs and Tools via API

More Information
