AI Default Channel Formats

As described in Channel Output, you can send JSON-formatted output directly against your Endpoints for it to be output to the respective channels.

The AI Default Channel is special in a way that content from the Default Channel is automatically converted into the correct payloads for all other channels (see our Say Node documentation for more information).

Using the Code Node, you can also send JSON-formatted output to the Endpoints for the AI Default Channel, and it will handle the conversion into the appropriate content. The required payload formats are described below.

Payload Formats

Text

Sends text to the Endpoint.

Text in Say Node

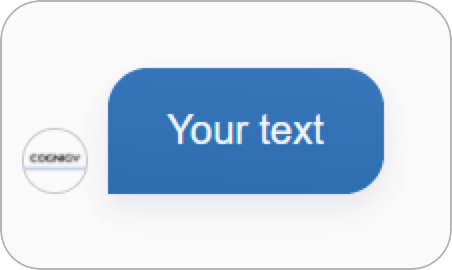

Text in Webchat
actions.output("Your text", null);

Text with Quick Replies

Sends text and a number of quick reply buttons.

Quick Replies in Say Node

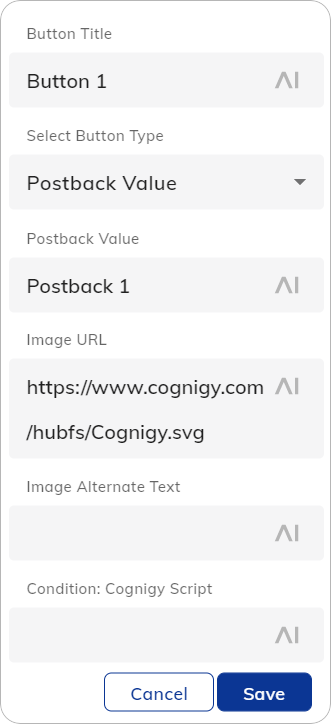

Quick Reply Detailed Settings
Webchat Quick Replies
actions.output(null, {
  "type": "quickReplies",
  "_cognigy": {
    "_default": {
      "_quickReplies": {
        "type": "quick_replies",
        "text": "Quick Reply Text",
        "quickReplies": [
          {
            "id": 111,
            "contentType": "postback",
            "payload": "Postback 1",
            "title": "Button 1",
            "imageUrl": "https://www.cognigy.com/hubfs/Cognigy.svg"
          },
          {
            "id": 112,
            "contentType": "phone_number",
            "payload": "+49123456",
            "title": "Button 2"
          },
          {
            "id": 112,
            "contentType": "trigger_intent",
            "payload": "",
            "title": "Button 3",
            "intentName": "Intent Name"
          }
        ]
      }
    }
  }
});

Outputs a carousel of cards.

Gallery in Say Node
Gallery Button Settings
Gallery in Webchat
actions.output(null, {
  "type": "gallery",
  "_cognigy": {
    "_default": {
      "_gallery": {
        "type": "carousel",
        "items": [
          {
            "id": 111,
            "title": "Cognigy.AI",
            "subtitle": "Cognigy.AI is a conversational AI platform.",
            "imageUrl": "https://www.cognigy.com/hubfs/AI%20Copy%205.svg",
            "buttons": [
              {
                "id": 112,
                "payload": "Postback 1",
                "type": "postback",
                "title": "Button 1"
              },
              {
                "id": 113,
                "payload": "",
                "type": "web_url",
                "title": "URL Button",
                "url": "https://www.cognigy.com/products/cognigy-ai"
              }
            ]
          },
          {
            "id": 121,
            "title": "Cognigy.VG",
            "subtitle": "Cognigy Voice Gateway connects your AI to your contact center",
            "imageUrl": "https://www.cognigy.com/hubfs/cognigy-vg-logo.svg",
            "buttons": [
              {
                "id": 122,
                "payload": "",
                "type": "web_url",
                "title": "Click me",
                "url": "https://www.cognigy.com/products/voice-gateway"
              }
            ]
          }
        ],
        "fallbackText": "Fallback text for voice channels"
      }
    }
  }
});

Text with Buttons

Outputs text with a list of buttons.

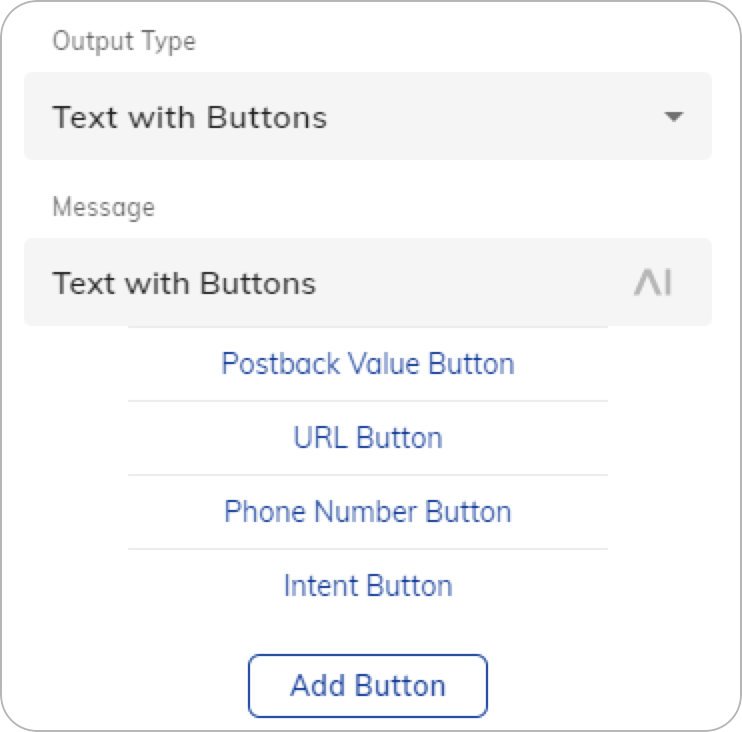

Text with Buttons in Say Node
Text with Buttons Detailed Settings

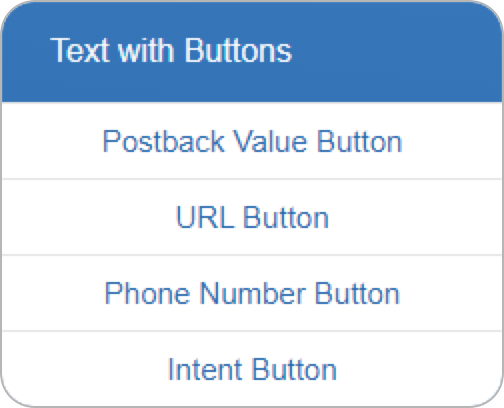

Text with Buttons in Webchat
actions.output(null, {
  "type": "buttons",
  "_cognigy": {
    "_default": {
      "_buttons": {
        "type": "buttons",
        "text": "Text with Buttons",
        "buttons": [
          {
            "id": 111,
            "payload": "Postback Value",
            "type": "postback",
            "title": "Postback Value Button"
          },
          {
            "id": 112,
            "payload": "",
            "type": "web_url",
            "title": "URL Button",
            "url": "https:\\\\google.com"
          },
          {
            "id": 113,
            "payload": "+491234567",
            "type": "phone_number",
            "title": "Phone Number Button"
          },
          {
            "id": 114,
            "payload": "",
            "type": "trigger_intent",
            "title": "Intent Button",
            "intentName": "Intent Name"
          }
        ]
      }
    }
  }
});

List

Outputs a list.

List in Say Node
Say Node settings
List in webchat
actions.output(null, {
  "type": "list",
  "_cognigy": {
    "_default": {
      "_list": {
        "type": "list",
        "items": [
          {
            "title": "List Item 1",
            "subtitle": "Subtitle",
            "imageUrl": "https://www.cognigy.com/hubfs/Cognigy.svg",
            "defaultActionUrl": "",
            "imageAltText": "Alternate Text",
            "buttons": [
              {
                "type": "postback",
                "payload": "Postback Value",
                "title": "Postback Button"
              }
            ]
          },
          {
            "title": "List Item 2",
            "subtitle": "",
            "imageUrl": "",
            "defaultActionUrl": "",
            "buttons": [
              {
                "type": "web_url",
                "payload": "",
                "title": "URL Button",
                "url": "https:\\\\www.google.com"
              }
            ]
          },
          {
            "title": "List Item 3",
            "subtitle": "",
            "imageUrl": "",
            "defaultActionUrl": "",
            "buttons": [
              {
                "type": "phone_number",
                "payload": "+491234567",
                "title": "Phone Number Button"
              }
            ]
          },
          {
            "title": "List Item 4",
            "subtitle": "",
            "imageUrl": "",
            "defaultActionUrl": "",
            "buttons": [
              {
                "type": "trigger_intent",
                "payload": "",
                "title": "Intent Button",
                "intentName": "Intent Name"
              }
            ]
          }
        ],
        "button": {
          "type": "postback",
          "condition": "",
          "payload": "Postback value",
          "title": "Separate Button from List"
        }
      }
    }
  }
});

Audio

Outputs audio from a URL.

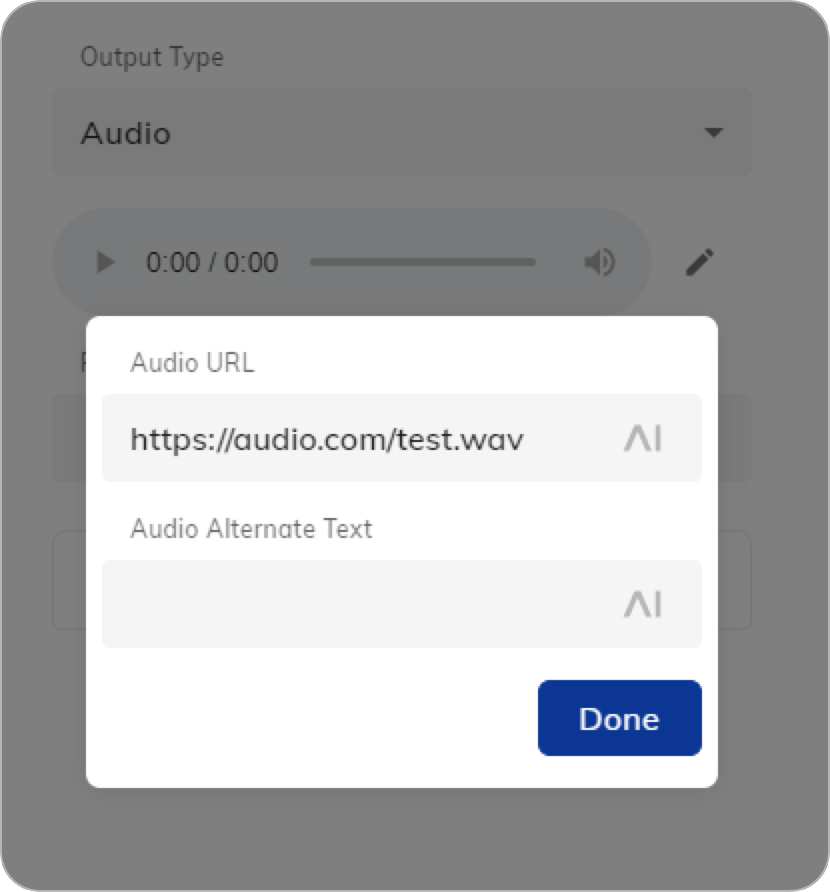

Audio and Details in the Say Node
Audio in Webchat
actions.output(null, {
  "type": "audio",
  "_cognigy": {
    "_default": {
      "_audio": {
        "type": "audio",
        "audioUrl": "https://audio.test/test.wav"
      }
    }
  }
});


Outputs image from a URL.

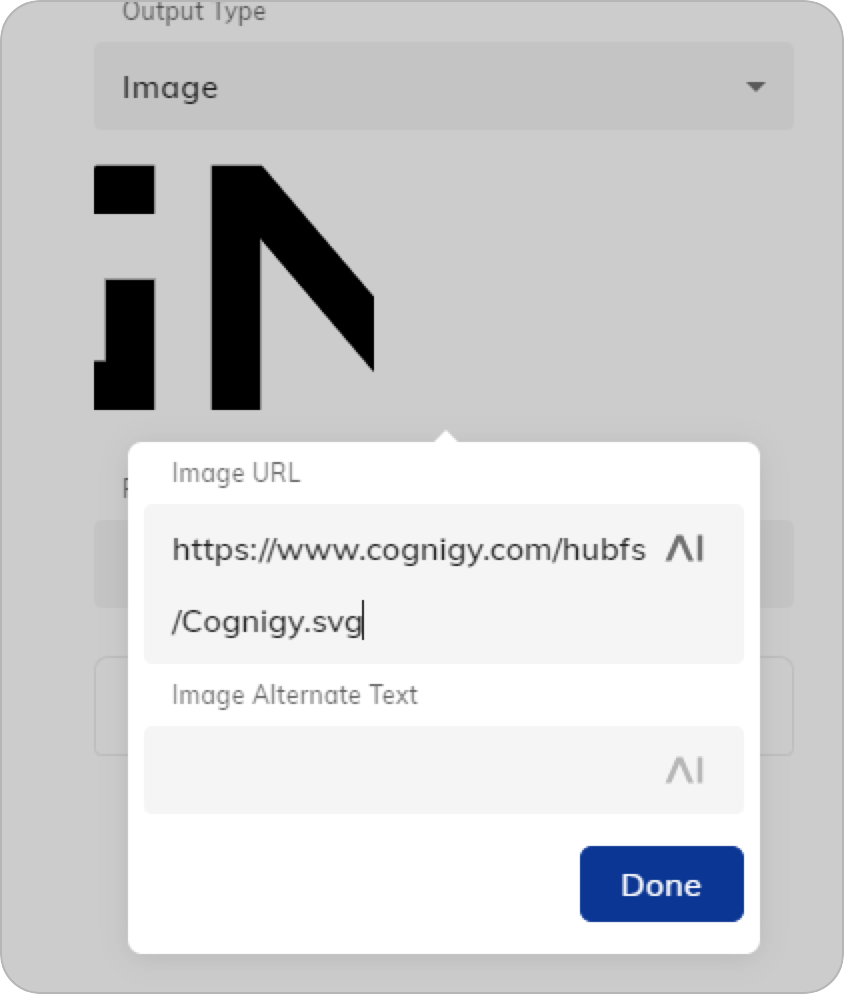

Image and Details in the Say Node
Image in Webchat
actions.output(null, {
  "type": "image",
  "_cognigy": {
    "_default": {
      "_image": {
        "type": "image",
        "imageUrl": "https://testURL.test/image.jpeg"
      }
    }
  }
});

Video

Outputs video from a URL.

Video and Details in the Say Node

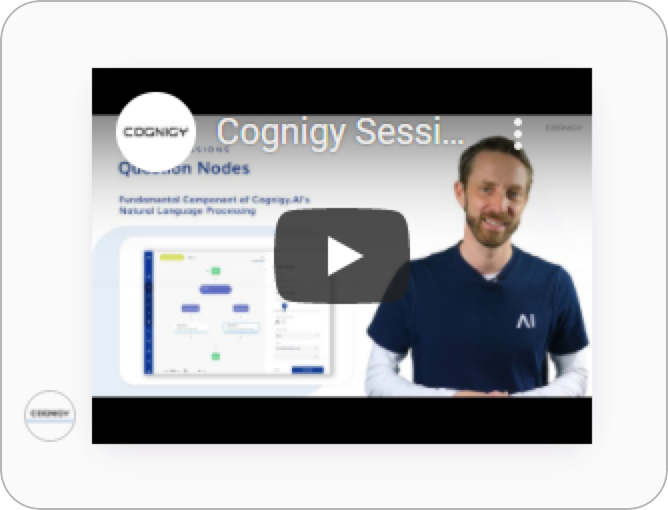

Video in Webchat
actions.output(null, {
  "type": "video",
  "_cognigy": {
    "_default": {
      "_video": {
        "type": "video",
        "videoUrl": "https://www.youtube.com/watch?v=iGc3fekZQOw"
      }
    }
  }
});

Adaptive Card

Outputs an adaptive card.

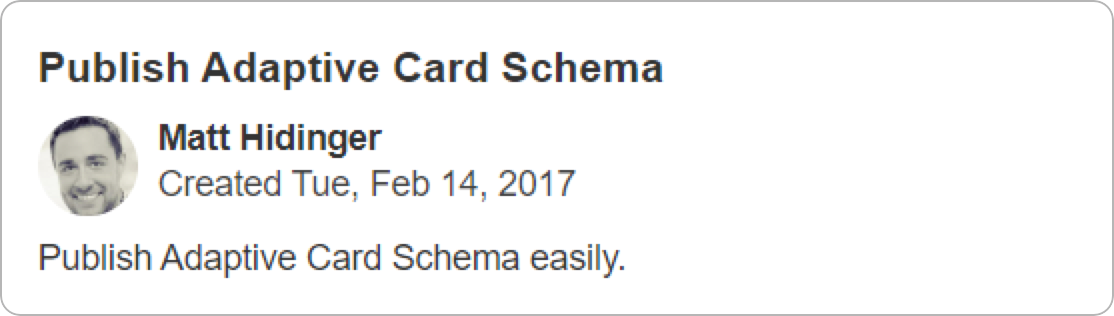

Adaptive card in Webchat
actions.output(null, {
  "type": "adaptiveCard",
  "_cognigy": {
    "_default": {
      "_adaptiveCard": {
        "type": "adaptiveCard",
        "adaptiveCard": {
          "$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
          "type": "AdaptiveCard",
          "body": [
            {
              "type": "TextBlock",
              "size": "Medium",
              "weight": "Bolder",
              "text": "Publish Adaptive Card Schema"
            },
            {
              "type": "ColumnSet",
              "columns": [
                {
                  "type": "Column",
                  "items": [
                    {
                      "type": "Image",
                      "style": "Person",
                      "url": "https://pbs.twimg.com/profile_images/3647943215/d7f12830b3c17a5a9e4afcc370e3a37e_400x400.jpeg",
                      "size": "Small"
                    }
                  ],
                  "width": "auto"
                },
                {
                  "type": "Column",
                  "items": [
                    {
                      "type": "TextBlock",
                      "weight": "Bolder",
                      "text": "Matt Hidinger",
                      "wrap": true
                    },
                    {
                      "type": "TextBlock",
                      "spacing": "None",
                      "text": "Created Tue, Feb 14, 2017",
                      "isSubtle": true,
                      "wrap": true
                    }
                  ],
                  "width": "stretch"
                }
              ]
            },
            {
              "type": "TextBlock",
              "text": "Publish Adaptive Card Schema easily.",
              "wrap": true
            },
            {
              "type": "Action.OpenUrl",
              "title": "View",
              "url": "https://adaptivecards.io"
            }
          ],
          "actions": [],
          "version": "1.5"
        }
      }
    }
  }
});
