xApp Architecture¶

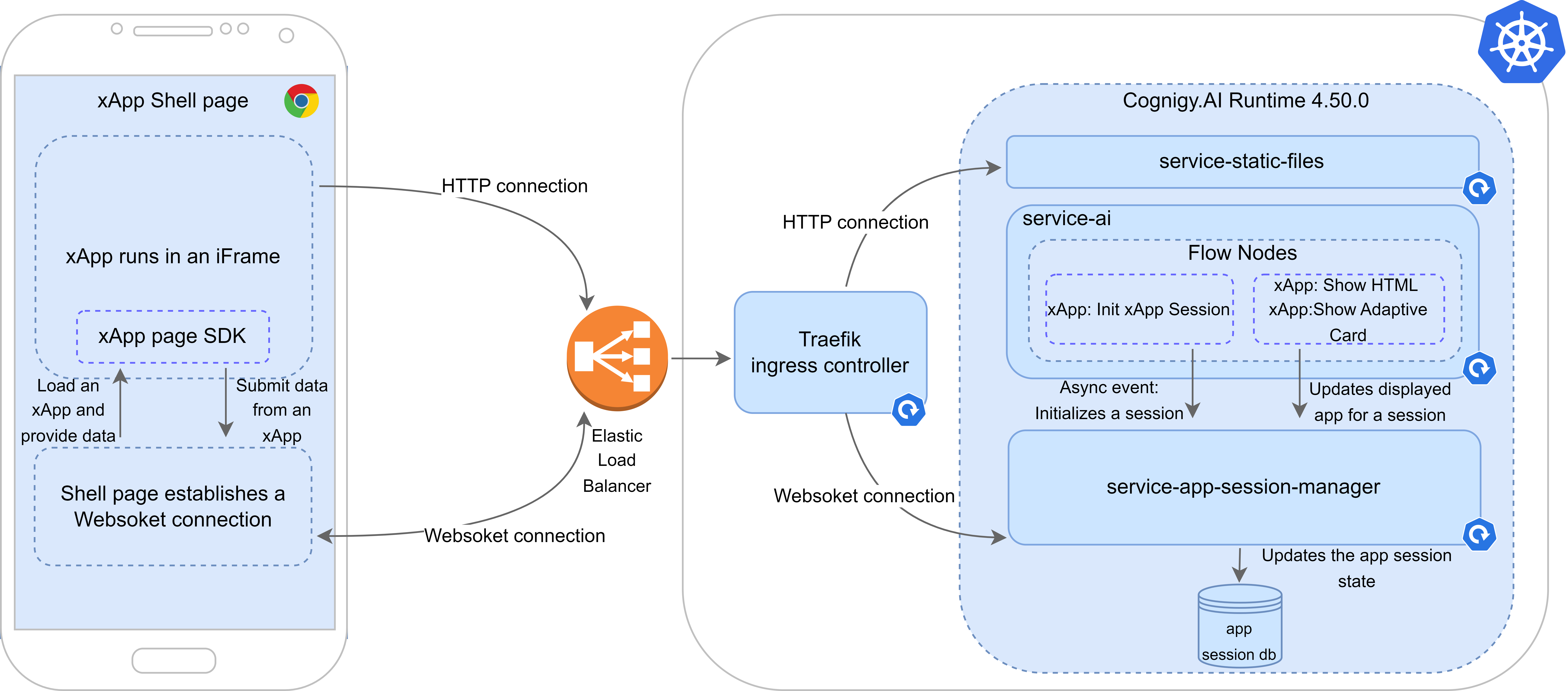

The following diagram illustrates the process when the xApp Shell Page loads its assets (HTML/CSS/JS) by requesting static files via HTTP/HTTPs 1.1 requests to service-static-files
and establishes a WebSocket connection (via Socket.io) to serviceapp-session-manager
to retrieve information about xApp sessions. This information includes an async event to initialize an xApp session, which creates a unique URL, and specifies which xApp will be displayed in a specific xApp session. The Elastic Load Balancer helps distribute incoming traffic, while Traefik dynamically routes traffic to backend servers based on specific requirements. The serviceapp-session-manager
updates the xApp session state in the App Session DB, and the WebSocket transfers data to the Shell page, which loads xApps and provides data to the SDK.
![](../../../_assets/xApps/architecture.png)
xApp Sequence Diagram¶
The diagram illustrates the sequence of interactions between a user, Cognigy Flow, xApp Backend, and xApp Page in the context of an xApp architecture integration.
sequenceDiagram
title Cognigy xApp - typical sequence of interactions
actor u as User
participant f as Cognigy Flow
participant xb as xApp Backend
participant xf as xApp Page
u->>f: 1. Start conversation
activate f
%% f->>f: xApp Init session
f->> xb: 2. xApp Init session
activate xb
xb->>f: 3. xApp session token
f->>f: 4. Compose xApp URL using token
f->>u: 5. "Enter your data in xApp using this URL"
f->>xb: 6. xApp Show HTML
xb->>xb: 7. Remember HTML
u->>xf: 8. Open xApp page
activate xf
xf->>xf: 9. Render Loading screen
xf->>xb: 10. Get page
xb->>xf: 11. Page HTML
xf->>xf: 12. Render HTML page
xf->>u: 13. HTML Page
u->>xf: 14. Fill in and submit data
xf->>xf: 15. SDK.submit(data)
xf->>xb: 16. data
xf->>xf: 17. Render Nothing to do here
deactivate xf
xb->>f: 18. input.data._cognigy._app.payload
deactivate xb
f->>f: 19. Process input.data
f->>u: 20. "Received your data from xApp"
deactivate f
- The user starts a conversation with a Cognigy Flow.
- The Cognigy Flow initializes a session with the xApp backend.
- The xApp backend responds with a session token.
- The Cognigy Flow composes a URL using the session token
- The Cognigy Flow sends a message "Enter your data in xApp using this URL" to the user.
- The Cognigy Flow sends a request to the xApp backend to show the HTML page.
- The xApp backend remembers the HTML page.
- The user opens the xApp page.
- The xApp page renders a loading screen.
- The xApp page requests the HTML page from the xApp backend.
- The xApp backend responds with the HTML page.
- The xApp page renders the HTML page.
- The HTML page is shown to the user.
- The user fills in and submits data.
- The xApp page submits the data to the SDK.
- The SDK sends the data to the xApp backend.
- The "Nothing to do here" page is rendered.
- The xApp backend processes
input.data._cognigy._app.payload
and sends it to Cognigy Flow as input. - The Cognigy Flow processes
input.data
. - The Cognigy Flow sends a message "Received your data from xApp" to the user confirming the data has been received.
